Product Description：

JIS D 0203 Rain And Spray Test Chamber

Type：BND-JIS-1000L

Application Background

Natural water sources like rain, seawater, and river water can cause significant damage to products and materials, leading to substantial economic losses annually. This damage includes corrosion, fading, deformation, strength reduction, swelling, and mold growth. Electrical products are particularly vulnerable as rain-induced short circuits can lead to fires. Therefore, conducting a shell protection water test for specific products or materials is an essential procedure.

General Application Areas

This equipment is widely used in testing outdoor lamps, household appliances, auto parts, and other electronic and electrical products. It meets the test requirements of R1, R2, S1, S2 in the JIS D0203 standard.

Features:

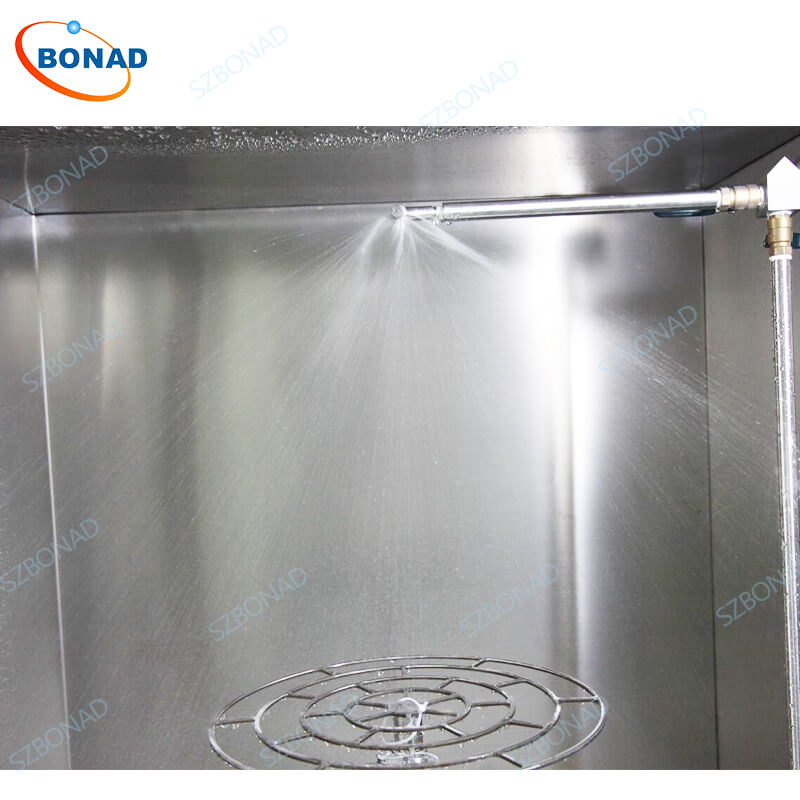

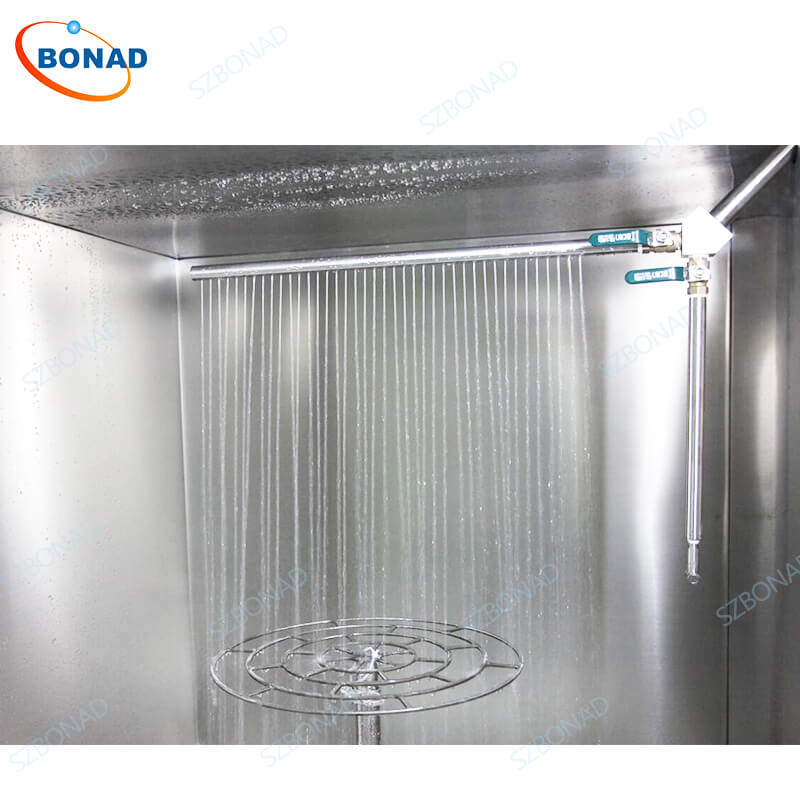

1. Standard Compliance: Suitable for R1/R2/S1/S2 watering tests as per Japanese standard JIS D0203.

2. Durable Construction: The shell is made from high-quality domestic steel plate with a painted surface for durability and aesthetics.

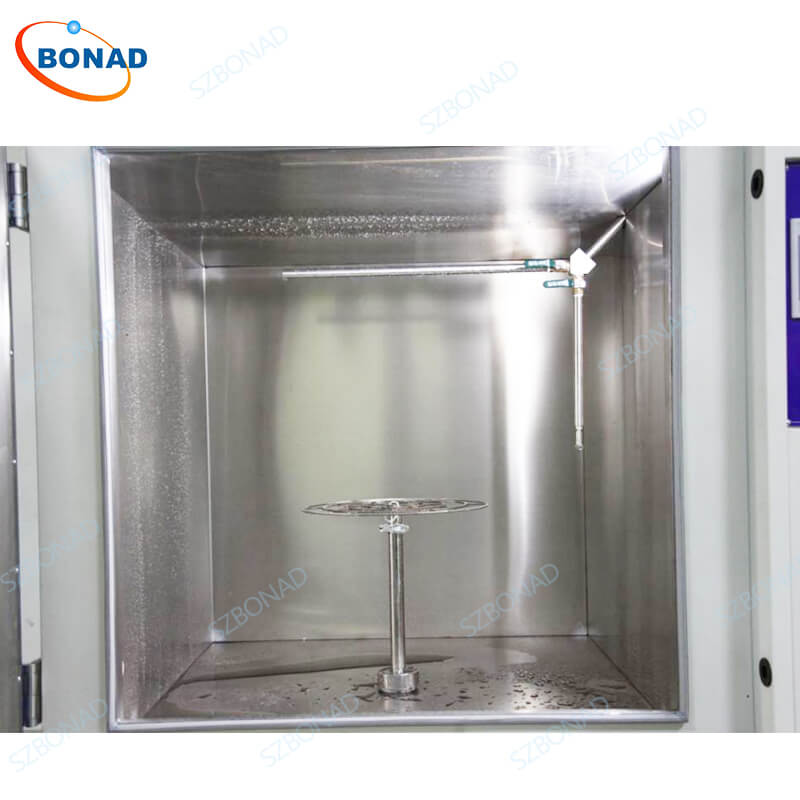

3. Rust-Resistant Inner Box: Made from SUS304# stainless steel to ensure long-term use without rusting.

4. Integrated Water Tank: Includes a circulating water tank with low water level alarm detection.

5. Observation Window: Transparent tempered glass window on the door with LED lighting inside for easy observation of test conditions.

6. Precision Motor Control: Uses a high-quality domestic stepping motor to control coil speed accurately at 23 revolutions per minute (RPM), adjustable via touch screen.

7. Adjustable Flow Rate: The flow rate of the coil can be adjusted on the panel.

8. Versatile Turntable Drive: High-quality stepping motor allows speed and angle adjustments via touch screen; supports forward and reverse rotation to prevent winding during power-on tests.

9. Customizable Test Time: Test duration can be set between 0-999 minutes using the touch screen.

10. High-Precision Filtration: Standard filters effectively remove impurities from tap water; replaceable filter elements.

11. Advanced Control System: Features a 7-inch touch screen + Panasonic PLC; electrical components from reputable brands like LS and Omron ensure reliability.

Technical Parameters：
