Product Description：
Name：ISO 2248 Zero Distance Drop Tester - High Precision Equipment for Impact Resistance Testing
Type：BND-ZXD001
Equipment Overview:

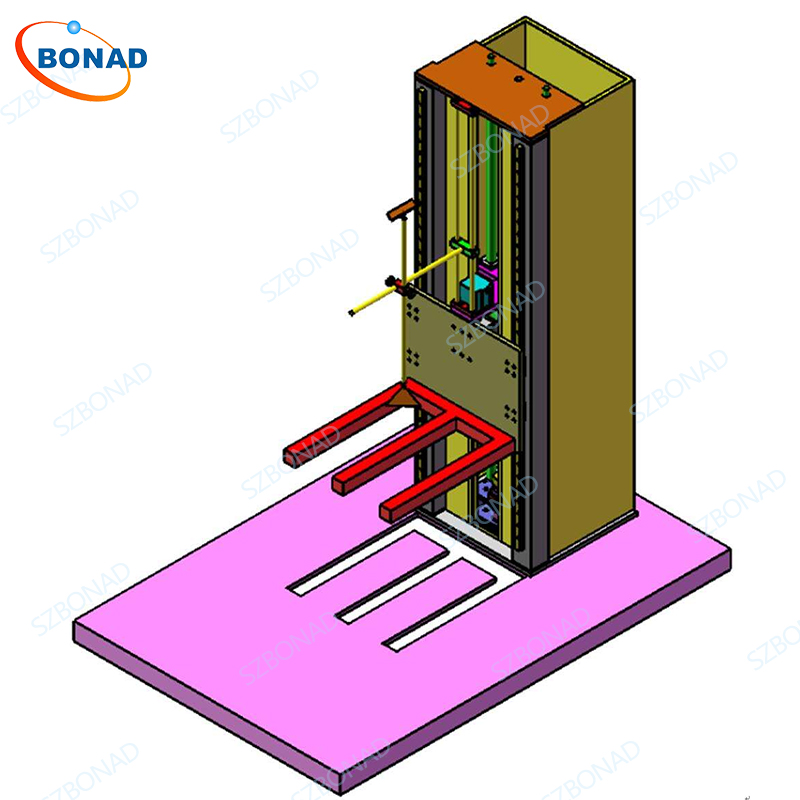

The Zero Drop Tester is primarily used to assess the impact of drop shocks on objects during actual transportation and handling processes, evaluating the impact resistance of items during transit. This device is mainly utilized for drop tests on larger items. It features an "E" shaped fork that can quickly move downward, serving as a test specimen holder. The test cargo is placed in balance according to the test requirements. During the test, the pallet moves downward at high speed, detaching from the specimen. Before the test cargo hits the base plate, the "E" shaped fork is embedded flush with the base plate under the action of a high-efficiency shock absorber. Theoretically, the Zero Drop Tester can perform drop tests from zero height to its maximum drop height range. The drop height is digitally set according to test requirements and automatically executes the drop test at the set height.
Compliance Standards:
lISO 2248-1985 Packaging Complete Transport Packages Vertical Impact Test Standard
lJIS Z0202-1994 Packaging Goods Drop Test Method
lASTM, D5276,ISTA, and other related testing standards
lGB/T 4857.5-92 Packaging Transport Packaging Drop Test Method
lGB/T 1019-2008 General Rules for Household and Similar Electrical Appliance Packaging
Main Parameters:
| Items | Parameters |
| Drop Height | 0～1500mm (adjustable, settable) |
| Drop Height Error | ±10mm (1%) |
| Max. Specimen Load | 60 Kg,100 kg,200 kg,300 kg or customize higher capacities |
| Max. Specimen Size | 1660×430×1100 (mm)larger based on requirements |
| Drop Test Method | Free fall drop test |
| Test Aspects | Realize surface, edge, and corner drop tests |
| Effective Size of Impact Base Plate | 1800×1200 (mm) |
| Impact Plate Material | 45# steel, solid steel plate |
| Control Method | PLC touch screen control + remote control |
| Lifting Method | Electric (motor), dual guide rails for stability |
| Arm Power | Pneumatic (cylinder reset and drop achieved by pneumatic pressure; automatic air pressure interlock prevents abnormal arm detachment due to loss of air pressure) |
| Overall Dimensions | Approximately 2000×1400×2300mm |
| Weight | Approximately 2000Kg |
| Protection Devices | Upper and lower limit switch protection |
| Power Supply | AC 380V 50/60HZ |
| Total Power Consumption | Approximately 3.5KW |
| Air Source | User-provided (i.e., air compressor) |
If you are looking for more different drop test machines for drop testing of small packages less than 80 kg, please check out our Pneumatic drop tester, Single-arm Drop Tester and Double-arm Drop Tester, or directly reach us to learn more.
